XLASE PLUS
PRINCIPLE
The World’s Most Advanced and Versatile Laser and CPL light platform that does it all..
Versatile laser platform for multiple medical and aesthetic specialities.
UNIQUE TECHNOLOGICAL INNOVATIONS
Biotec Italia platforms introduce a new concept based on the latest hardware and software design. Our research and development team develops next generation hardware solutions for the high-tech and high-performance medical industries, allowing constant system update to eliminate the problem of technology obsolescence. Maximum power and performance, always guaranteed.
Blending of technologies is the key to an amazing increase in the quality of the medical and aesthetic results.
XLASE PLUS
The simple and affordable way to a wide variety of cosmetic and aesthetic procedures with less risks and superior outcomes.
Laser technology has been used for an increasing number of medical and aesthetic procedures.
The new Xlase Plus is a versatile platform that offers treatments for multiple applications without investing in multiple laser systems.
Its modular design provides multiple distinct medical and cosmetic solutions all built into one compact unit. With Xlase Plus the different technologies may be purchased and incorporated in the unit at different times, offering versatility and ease to our customers.
Xlase Plus grants ultimate fexibility to treat a wide variety of patient-requested procedures. The system’s modular applicators are designed to offer effective and reliable results with minimal patient discomfort and downtime. No single device will do more than Xlase Plus.
The device includes the CPL (Calibrated Pulsed Light) hair removal system, the popular YAG laser, the 810nm Diode laser applicator, the Q-switched YAG laser and the Erbium YAG laser.
• Numerous aesthetic/medical applications;
• High output energy for greater efficacy;
• Expandable and upgradable;
• High patient and clinical satisfaction;
• Easily transportable from room to room.
MAIN FEATURES
• Several distinct laser technologies.
• Only system in the world combining laser diode and flash lamp pumping laser technologies.
• Numerous aesthetic/medical applications including the use on patients with toe nail fungus.
• High output energy for faster and more satisfying results.
• Never obsolete: expandable and upgradeable.
• High patient and clinical staff satisfaction.
• Easily transportable.
• Customized to fit your practice.
• Affordable with a high return on investment.
Modular laser platform.
Multi-application. Always evolving.
- Diode Laser 810 and Alex Pro 760/808nm
- SLP Nd:YAG 1064/532nm
- NPP QS Nd:YAG 1064/532nm
- Er:YAG fractional 2940nm
- CPL (Calibrated Pulsed Light)
TECHNICAL DATA
SUPPLY VOLTAGE
230 VAC 50/60Hz
POWER
2000W (Max)
CLASS AND TYPE
I BF
DIMENSIONS XLASE STANDING
340x1000x670 mm
WEIGHT XLASE STANDING
61 Kg
FUSES
2x 10A 400V
DIODE – ALEX PRO
LASER TYPE
HIGH POWER DIODE
CLASS
IV
WAVELENGTH
810nm±20% (Diode) – 760/808nm (AlexPro)
PULSE WIDTH
<60ms (Diode) / <100ms (Alexd Pro)
CONTINOUS PULSES
REPETITION RATE
FROM 1 TO 10Hz
FLUENCE TO TISSUE
UP TO 56J/cm2
SPOT SIZE
10×10 (100mm2) – 10×15 (150mm2)
INTERCHANGEABLE PRISM
MAX POWER
2800W – 4000W
SKIN COOLING
WATER COLD SAPPHIRE
LASER EMISSION CONTROL
FOOTSWITCH & HANDPIECE SWITCH
SLP Nd:YAG
LASER TYPE
Nd:YAG
CLASS
IV
WAVELENGTH
1064nm (532nm WITH KTP LENS)
ENERGY DENSITY
UP TO 22J
PULSE DURATION
FROM 250μs to 50ms
SPOT SIZE
2,5 / 4 / 5 / 6 / 7 / 10mm
REPETITION RATE
FROM 1 TO 10Hz
AIMING BEAM
DIODE LASER, 1mW @ 635nm – CLASS II
EMISSION CONTROL
FOOTSWITCH & HANDPIECE SWITCH
NPP QS Nd:YAG
LASER TYPE
Cr:YAG + Nd:YAG + Ce:YAG
CLASS
IV
WAVELENGTH
1064nm (532nm WITH KTP LENS)
PULSE DURATION
FROM 900ps TO 5ns
SPOT SIZE
4 / 5 / 6mm
PULSE REPETITION RATE
FROM 1 TO 6Hz
ENERGY DENSITY
UP TO 5J
AIMING BEAM
DIODE LASER, 1mW @ 635nm – CLASS II
LASER EMISSION CONTROL
FOOTSWITCH & HANDPIECE SWITCH
Er:YAG FRACTIONAL
LASER TYPE
Er:YAG
CLASS
IV
WAVELENGTH
2940nm
PULSE DURATION
0,5ms – 1ms – 1,5ms – 2ms
ENERGY
UP TO 2J
REPETITION RATE
FROM 1 TO 6Hz
SPOT SIZE
6mm (Ablativo) – 9X9mm (Fractional)
NUMBER OF STACKS
FROM 1 UP TO 6
LASER EMISSION CONTROL
FOOTSWITCH & HANDPIECE SWITCH
CPL (CALIBRATED PULSED LIGHT)
SOURCE
XENON LAMP
SPECTRUM OF EMISSION
550-1200nm; 550-950nm; 650-950nm
410-1200nm; 695-1200nm; 755-1200nm
PULSE DURATION
FROM 1 TO 50ms
ENERGY
UP TO 36J/cm2
REPETITION RATE
UP TO 3Hz
TREATMENT AREA
50mmx10mm (5cm2)
CHANGEABLE LIGHTGUIDES
15mmx15mm – 6mmx15mm – 6mmØ
EMISSION CONTROL
FOOTSWITCH & HANDPIECE SWITCH

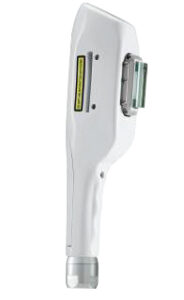

Diode Laser 810nm and AlexPro
The request for hair removal on large body areas is constantly growing, but the technologies currently in use have shown several limits: excessive time required to achieve permanent hair reduction, lack in safety and difficulty in treating multiple skin types.
The Xlase Plus diode laser represents the safest and most effective solution to treat unwanted hair: equipped with the state of the art optical technology, the diode module can reach up to 4000W of power and is considered the best choice for permanent hair removal.
Available in a single wavelength at 810nm, or double at 808 and 760nm (AlexPro laser module) which combines all the characteristics of alexandrite laser with the advantages of diode technology, Xlase Plus can treat all types of skin and most hair color, being able to perform fast hair removal treatments with maximum comfort in even the darkest skin.
The interchangeable PLUG-IN sapphire optics measure 12mm2 and 23mm2 and guarantee fast procedures while protecting the surface of the skin through contact cooling.
Motionspeed procedure combines simoultaneous cooling with fast laser pulses increasing speed and comfort.
Long pulse procedure rises the target’s therapeutic temperature during each pulse to treat even very deep follicles.
USER INTERFACE
Intuitive presets for fast learning
curve and easy treatment
procedure.
DISTINTICTIVE TECHNOLOGIES
Encapsulated stacks diode in fully closed chamber ensures high efficient laser source and prolongs laser module life.
Clamped laser bars technology guarantees high efficiency and long lifetime, up to 20millions pulses.
AlexPro, the double wavelengths 760/808nm diode, allows the operator to dose the emission of a single wavelength or both simultaneously, ensuring even more effective hair removal, from blond hair to darker black.
MOTION SPEED 10.10.10
Efficacy: less chromophores dependent, allows delivery of laser energy more efficiently.
Safety: lower fluence is required since the target is reached by the gradual building up of energy.
Decreased pain: The unique Motion Speed technology at low pulse duration inhibits the transmission of pain sensation.
Treatment time: with a spot size of 10x10mm, at 10 pulses per second, large areas can be treated rapidly.
SUPER BURST
This unique treatment mode allows for laser energy to be emitted in multiple bursts of high energy in short micro pulses; resulting in high efficiency and safety.
LONG PULSE
Diode technology by Xlase Plus uses high-power technology that can be operated with user-select pulse duration, delivering high fluence.
This is combined with effective contact cooling and compression for high-performance even on the most difficult to treat hairs.
Clinical results.
INDICATIONS FOR USE FOR MEDICAL TREATMENT
• Hirsutism.
• Folliculitis.
INDICATIONS FOR USE FOR AESTHETIC TREATMENT
• Hair Removal.

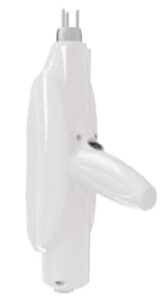

SLP Nd:YAG 1064/532nm
The SLP Nd:YAG applicator emits light with a wavelength of 1064nm and 532nm; the light penetration into tissue reaches its maximum depth while its low absorption guarantees preservation of the surrounding tissues on all skin types. It combines a long and short pulse in a compact and technologically advanced applicator that offers a broad range of popular treatments for leg veins, vascular lesions, photo rejuvenation, hair removal and onychomycosis.
SLP Nd:YAG zoom applicator allows a wide variety of treatments from hair removal, fine vascular treatments to non ablative skin tightening. The selected treatment source is delivered from the handpiece into the skin, where it releases only the wavelengths absorbed by the target. The pulse intensity and duration are tightly controlled to ensure a selective target heating, while leaving the surrounding tissue unharmed.
The ideal focal distance is different with each lens. The wide choice of focus lens adjust the laser beam to a precise spot that enables accurate results.
In order to achieve high quality and precise vascular cauterization, the laser beam is directed to a focus lens that takes a designed shape of 2.5mm.
The proprietary technology Easy- Plug laser connector combines water-data signal-power signal, to allow easy switch from one laser to another.
USER INTERFACE
Intuitive presets for fast learning
curve and easy treatment
procedure.
DISTINTICTIVE TECHNOLOGIES
The extra compact resonator ensures that the beam remains stable, doesn’t grow with multiple reflections, contributing to minimum beam waste.
The pre-aligned beam exhibits a homogeneous top hat profile integrated in a temperature regulated housing for optimum performance.
The beam shaping lens converts gaussian beam spot profile to top hat beam spot with equal and homogenous energy distribution within spot size.
ADVANTAGES
The SLP Nd:YAG laser is homogeneously absorbed in the three main chromophores targeted in surgical and aesthetic laser treatments, melanin, blood and water. This makes it an ideal laser source for those who seek versatility for their practice by combining surgery and non-ablative aesthetics.
For decades the deeply penetrating 1064nm Nd:YAG wavelength has been accepted as safe, effective and suitable for all skin types.
EFFECTIVE AESTHETIC
With its exceptional pulse control and unique double frequency technology, is the gold standard for non-surgical aesthetic laser procedures such as onychomycosis, acne and vascular treatments, permanent hair reduction, skin rejuvenation and more.
LASER HYPERHIDROSIS
Laser axillary hyperhidrosis treatment is another safe, effective, and non invasive laser procedure, used to disable axillary sweat glands by irradiating the glandular tissue.
Clinical results.
INDICATIONS FOR USE FOR MEDICAL TREATMENT
• Vascular Lesions.
• Benign pigmented lesions.
• Onychomycosis.
• Acne.
INDICATIONS FOR USE FOR AESTHETIC TREATMENT
• Non Ablative Skin Rejuvenation.
• Hair Removal.

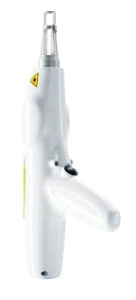

NPP QS Nd:YAG 1064/532nm
The NPP (Near Pico Pulse) QS Nd:YAG applicator is the ideal choice for the treatment of pigmented lesions, such as sun-damaged skin and age spots, and for the removal of unwanted tattoos. The specific wavelength 1064/532nm is optimal for bright colored tattoos and solar lentigines, it is also used for vascular lesions, including facial and leg veins, telangiectasias and angiomas.
It combines high peak power and short pulse duration resulting from the innovative OptoH Q-Switched crystal with unique dual-rod resonator technology, to get stable high energy laser output. The giant laser pulse has only 900ps pulse width which produces the mega-watt level high peak power, even with larger spot sizes.
High-precision refractive optical elements enable uniform energy distribution, cause less energy scattering and prevent central heat build-up.
OptoH Q-Switch crystal is a unique resonator technology to get stable, high energy laser output to produce a giant laser pulse with 6-10ns pulse width.
KTP 532 or frequency doubled Nd:YAG laser crystal produces a visible green laser with wavelength of 532nm, ideal to treat superficial skin lesions.
USER INTERFACE
Intuitive presets for fast learning
curve and easy treatment
procedure.
DISTINTICTIVE TECHNOLOGIES
Qswitched Nd:YAG dual frequencies 1064/532nm is ideal for treating dark and colored tattoos, dermal pigmented and vascular lesions.
Short pulse duration with high peak energy are directed onto the tattoo, creating a photo-acoustic effect within the pigment.
During the skin peeling procedure a carbon pigment provides a target for the laser beam to effectively heat and exfoliate the skin.
ADVANTAGES
The QS Nd:YAG laser is the treatment of choice for tattoo removal as it can remove tattoo completely without leaving any scarring. The absorption of high-power, laser pulses in the skin breaks up the tattoo pigments into smaller particles which are more readily absorbed by the body’s immune system.
The deep penetration of the laser beam into the skin ensures that even the deepest pigments in professional tattoos are reached, while its low absorption in surrounding skin structures significantly reduces the risk of unwanted side effects, such as hypopigmentation.
DUAL-ROD RESONATOR TECHNOLOGY
The NPP applicator utilizes a pumped double-rod Nd:YAG laser resonator. The key feature of this system is the use of two rods. The laser, which is virtually free from thermal disruption, typical limit in other hand-held QSwitched laser, generates twice as much energy compare to a single-rod Nd:YAG laser and exhibits an increased stability and superior beam quality.
Clinical results.
INDICATIONS FOR USE FOR MEDICAL TREATMENT
• Benign Pigmented Lesions.
INDICATIONS FOR USE FOR AESTHETIC TREATMENT
• Tattoos Removal.
• Carbon Peel.
Er:YAG fractional 2940nm
The Er:YAG fractional applicator works by removing microscopic layers of skin, producing outstanding results with minimal risk and adverse reactions. It treats both superficial and medium depth lines, including some scars, depending on the depth of the ablation and the amount of treatments performed.
The Er:YAG fractional procedure produces thousands of deep, tiny columns in the skin. It works on old epidermal pigmented cells without affecting the surrounding tissue, thus reducing healing time (about 24 hours) and promoting the skin’s natural regenerating process. It is a safe, non-invasive procedure that results in a fresh, healthy and young skin.
The fractional lens has low absorption offering the longest lifetime, excellent durability, and maximum focus stability.
Ultra short pulsewidth, induces ablation of the epidermis with minimal thermal effects rejuvenating the supercial skin layers.
The fractional procedure creates an ablative thermal channel at the pixel area, without disturbing the surrounding tissue.
USER INTERFACE
Intuitive presets for fast learning
curve and easy treatment
procedure.
DISTINTICTIVE TECHNOLOGIES
Single or multiple stack/pulses can be adjusted to achieve precise, uniform ablative columns to depths of between 25 and 1,500μ.m.
Short pulse duration in laser ablation allows heat to diffuse into the tissue. When laser ablation is faster than thermal diffusion, heat cannot diffuse into the tissue.
ADVANTAGES
The Er:YAG fractional laser is widely recognized as the golden standard for laser surgery and skin resurfacing. It has the highest absorption coefficient in skin of all the infrared lasers, allowing extremely precise, micron layer by layer ablation of the epidermis.

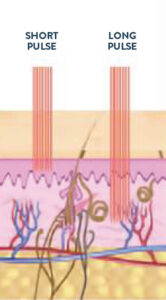

SHORT PULSE:
COLD TISSUE ABLATION
With a short pulsewidth, Er:YAG fractional laser induces minimal thermal effects to underlying tissue, offering effective skin rejuvenation treatments with higher comfort levels and shorter recovery times.
LONG PULSE:
ABLATION AND COAGULATION
With long pulse duration, more heat is absorbed in the skin increasing collateral thermal effect. These thermal effects produce collagen contraction and new collagen stimulation in the dermis.
Clinical results.
INDICATIONS FOR USE FOR MEDICAL TREATMENT
• Benign Pigmented Lesions.
• Acne Scarring.
INDICATIONS FOR USE FOR AESTHETIC TREATMENT
• Skin Rejuvenation.
CPL – Calibrated Pulsed Light
Superior by design, the Xlase Plus Calibrated Pulsed Light (CPL) applicator offers several innovative and advanced technology enhancements. Compared to the other IPL systems available on the market, the CPL system has proven to be among the most powerful and effective. It is simple and efficient to operate.
The unique platinum-coated reflective cavity generates maximum energy density with true energy fluence up to 30J/cm2 at a very high speed, giving up to 3 shots per second. The CPL applicator provides a range of different available wavelengths. Through the selection of sapphire crystal filters, the operator can choose the ideal wavelengths to effectively treat a wide number of skins conditions. These special cut-off filters are used to block out wavelengths of light below the filter number selected and allow only those wavelengths of light above the filter number to pass through.
50X10mm treatment window and up to 3 pulses per second eliminate skipped spots and ensure full coverage rate.
Integrated contact cooling technology cools the skin, minimizing the risk of burns, which in turn allows the use of higher fluences.
3 lightguides easily changeable to treat numerous skin condition swith a single, versatile handpiece. The sapphire lightguides are able to target treatment area precisely and selectively.
USER INTERFACE
Intuitive presets for fast learning
curve and easy treatment
procedure.
DISTINTICTIVE TECHNOLOGIES
Six sapphire filters provide superior light wavelength selectivity, effectively treating a variety of skin conditions.
Volumetric toning: the most effective solution for treating skin discoloration and rejuvenation through rapid pulse configurations (15 pulses per second).
ADVANTAGES
Based on Xenon flash lamp emission with chilled water cooling system and square pulse technology, the CPL applicator uses abroad spectrum of light while lasers emit a single wavelength. The CPL applicator produces a flat spectrum of light from 410nm to 1200nm.
SUPERIOR SELECTIVITY
Different filters are used to filter out lower and higher wavelengths to effectively treat a broad spectrum of vascular and pigmented lesions, including photoaging skin treatments and hair removal. Treatments are gentle offering gradual results with minimal patient downtime and risk of side effects.

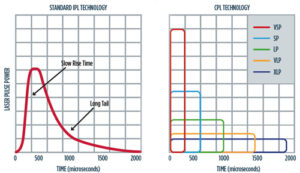

SQUARE-SHAPED PULSE EMISSION
Square-shaped pulses avoid the slow rise, and even longer drop-off in pulse power associated with standard light technologies, and ensure ultimate performance and patient comfort during all treatments. This uniform pulse creates a much more efficient heating process, so lower fluencies can be used to achieve the same clinical result.
Clinical results.
INDICATIONS FOR USE FOR MEDICAL TREATMENT
• Benign Pigmented Lesions.
• Benign Vascular Lesions.
• Microvascular Lesions.
• Acne.
INDICATIONS FOR USE FOR AESTHETIC TREATMENT
• Skin Aging.
• Hair Removal.
